Signal conditioners and measuring

transducers for explosion

protection

In addition to the standard functions, signal conditioners and measuring transducers for explosion protection guarantee electrical explosion protection for all substance groups and areas in accordance with the relevant standards. Due to the consistent product development and evaluation in accordance with SIL IEC 61508 and PL DIN EN ISO 13849, our signal conditioners and measuring transducers minimize hazards to an acceptable residual risk and ensure the protection of people, machines, and the environment.

Comparison of signal conditioners

and measuring transducers

Consistent SIL 3 1oo1 functional safety: AI, AO, DI, DO	YES	NO
SIL 2 SC 3 or SIL 3 functional safety, type-specific: AI, AO, DI, DO	NO	YES
PL d, PL c functional safety, type-specific	NO	YES
Two-channel design	NO	YES
Versions with wide range supply	NO	YES
Uninterruptible measurement of the current loops	YES	NO
Ambient temperature range of -40°C ... +70°C without derating	YES	NO
Gateways for bus and network connection	YES	NO
Information retrieval via Signal Conditioner App	NFC and QR code	QR code

• Reliable and safe signal isolation, conditioning, filtering, and amplifying with our signal conditioners and measuring transducers for explosion protection
• Safer and more space-saving than ever: Ex i and SIL 3 with an overall width of just 6.2 mm with highly compact signal conditioners and measuring transducers
• Maximum explosion protection for all Ex zones and gas groups with one- and two-channel Ex i signal conditioners and measuring transducers
• High operational safety with signal conditioners, all of which have SIL certification
• Integrate analog signals easily into the safety chain in accordance with the
• Machinery Directive with signal conditioners with performance level



Highly compact MINI Analog Pro

signal conditioners and measuring

transducers for explosion

protection

The highly compact MINI Analog Pro signal conditioners and measuring transducers combine intrinsic explosion protection and functional safety up to SIL 3 1oo1 in uniquely compact overall width and installed height. In your application, benefit from the particularly user-friendly design and operating concept, the wide range of configuration options, and end-to-end digitalization.

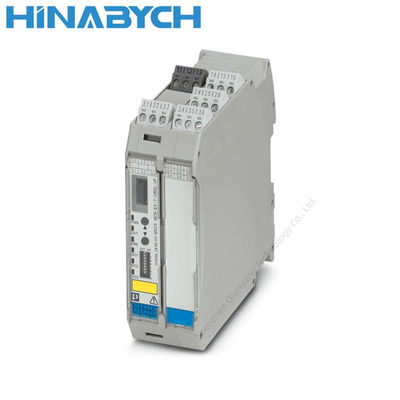

MACX Analog signal conditioners

and measuring transducers for

explosion protection

Our MACX Analog-Ex i signal conditioners and measuring transducers offer you a comprehensive range of solutions for safe and reliable signal conditioning. In intrinsically safe circuits, the Ex i versions provide you with explosion protection in all zones and substance groups. The products were consistently developed for safety applications for IEC/EN 61508 and PL EN ISO 13849 to ensure the safety of people, the environment, and the system.

Explosion protection

The chemical and petrochemical industries involve industrial processes which produce explosive atmospheres. They are caused, for example, by gases, fumes, or vapors. Explosive atmospheres are also likely to occur in mills, silos, and sugar and fodder factories due to the dust present there. Therefore, electrical devices in potentially explosive areas are subject to special directives, which include the ATEX, IECEx, NEC/CEC, and UL certifications and directives. You will find an overview of the basics of explosion protection here.

Services for safety and security in the industry

As a product-independent service provider, we will help you to minimize safety and liability risks:

• Systematic hazard and risk analysis in accordance with DIN EN 61511, including HAZOP study
• Consulting and support for the preparation of SIL assessments in accordance with IEC 61508 and IEC 61511
• Validation of the safety functions and proof test
• Advice on the use of explosion protection components and on dealing with explosive atmospheres in accordance with 2014/34/EU and 1999/92/EC

Discover other areas of expertise, such as industrial security, CE marking, and occupational safety, on our website or in our "Services for safety and security in the industry" brochure.


1. who are we?
A:Based in Shenzhen, China, we mainly sell to Southeast Asia, Eastern Europe, South America, North America and other countries;

2.how can we guarantee quality?
A:All brand products we sell are 100% original brand new authentic products, which can be inspected by brand manufacturers;

3. How long is your delivery time?
A: Generally, it will take 1 to 3 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.

5.What is your terms of payment ?
A:100% delivery in full, of course, after cooperation and familiarity, you can negotiate and adjust the payment terms

6. How do you make our business long-term and good relationship?
A:1. We maintain excellent quality and competitive prices to ensure that our customers benefit;
   2. We respect every customer, such as our friends, we sincerely do business and make friends, no matter where they come from.
